Both are 4-speed overdrive units. The 200-4R is generally lighter-duty and was used widely in BPO applications; the 700R4 is a more robust choice with broader parts support. We recommend upgrading to 700R4 where possible.
Yes. Correct TV cable geometry and calibration are essential to shift timing, line pressure, and clutch life.
Most 200-4R applications use a lockup converter. Ensure proper brake-switch integration or a suitable lockup strategy for your platform.
Chevy Monte Carlo, El Camino, Buick Grand National (and other BPO platforms), plus various Chevy swaps.
Jump to: TV cable calibration • Lockup strategy • Cooling & fluid • Install checklist • 200-4R vs 700R4
Correct TV geometry and adjustment directly control line pressure and shift timing. Use the proper carb/TBI/TPI bracket or throttle geometry kit and confirm full TV travel at WOT. Improper TV setup quickly burns clutches.
The 200-4R uses a lockup converter. Integrate brake-switch logic and a sensible lockup schedule for your platform (cruise only, no lockup under heavy throttle) to limit heat.
Flush/replace cooler & lines and verify strong return flow. Use fresh quality ATF and consider an auxiliary low-restriction cooler for hot climates or towing.

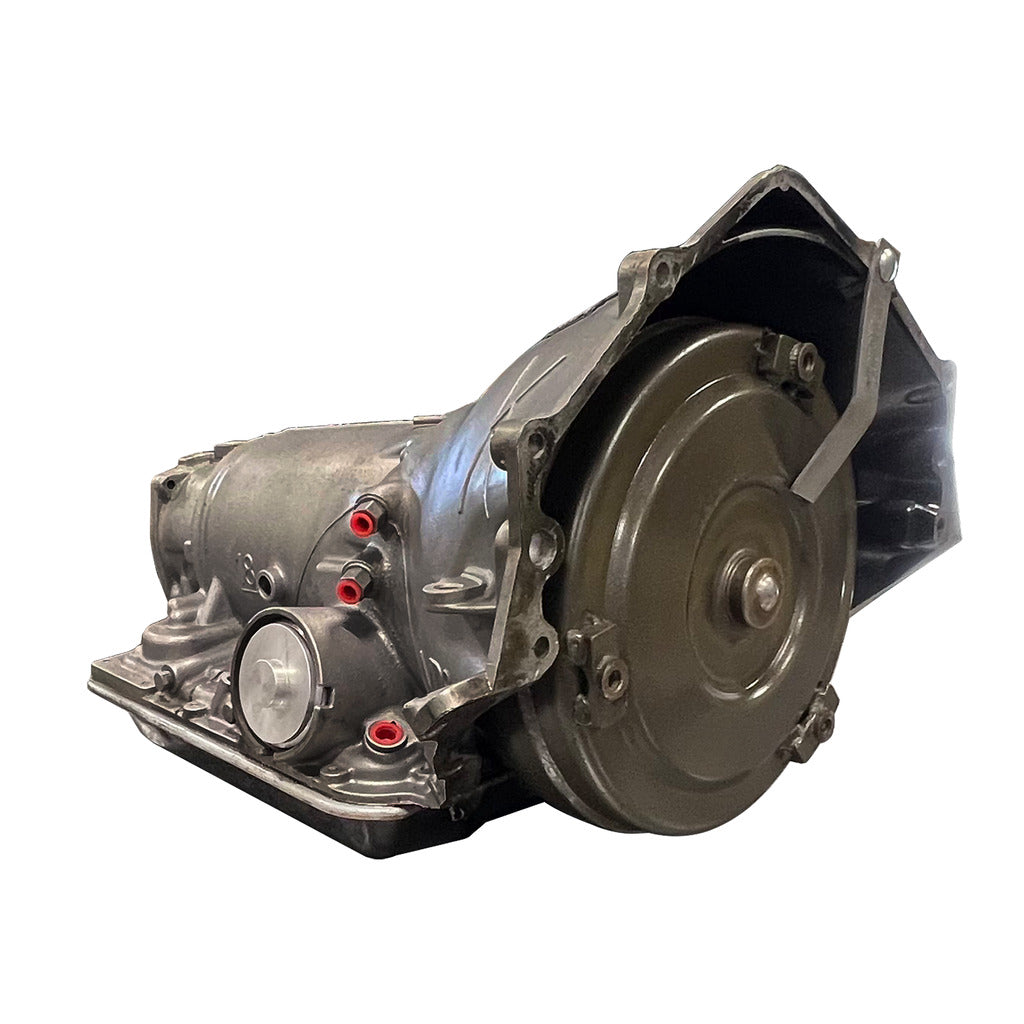

Both are 4-speed overdrive units with lockup. The 200-4R is commonly found in BPO platforms and popular in G-body swaps; the 700R4 is generally stronger with wider parts support. We recommend upgrading to a 700R4 where possible for headroom and serviceability.
Chevy Monte Carlo, El Camino, Buick Grand National, and other BPO applications.
No TCM programming—this is a hydraulically controlled unit. Focus on TV cable and lockup wiring.
Choose rear gears that balance launch with cruise RPM; overdrive helps keep highway revs down.
