4L70E adds stronger hard parts (e.g., 5-pinion gearsets, upgraded input components) and is best for later LS applications. We still address 3–4 clutch and sunshell reliability.
Perform a transmission adaptive reset/quick learn with a capable scan tool after install. This helps seat clutches and align shift timing. Some builds may benefit from updated PCM calibrations.
Yes. Each package includes a matched lockup converter (multi-disc and higher stall options in upper tiers).
DEXRON-VI. Verify level at temp and ensure strong cooler return flow after flush/line service.
Jump to: 3–4 clutch & sunshell • 2–4 band/servo & timing • Converter & TCC PWM • Cooling & pans • Install checklist • Adaptive reset / quick learn
The 4L70E inherits the 4L60-family’s sensitivity in the 3–4 clutch and sunshell. Our Street/Sport/Track tiers increase 3–4 capacity, update clearances, and use a hardened “Beast”-style shell and reinforced input components to survive heat and shock loads from towing, sticky tires, and higher power.
Servo apply timing and accumulator strategy are critical for shift feel and 2–3/3–2 durability. Our builds revise accumulator calibration and line rise for crisp, repeatable shifts without flare or bind—great for heavy vehicles and mixed street/track use.
PWM lockup and towing can overheat the TCC. We include a matched lockup converter (multi-disc options on upper tiers) to reduce slip and stabilize lockup—keeping temps controlled on grades and during passes.
Run fresh DEXRON-VI, always flush/replace cooler & lines, and confirm strong return flow. A low-restriction auxiliary cooler and a deep aluminum pan help manage heat during towing and spirited use.
After install, perform a transmission adaptive reset/quick learn with a capable scan tool, then run a light-throttle drive cycle—progressive upshifts and gentle coastdowns—to seat adaptives and protect fresh friction material.
4L70E uses stronger internals (e.g., 5-pinion gearsets, upgraded input components) but still benefits from 3–4 clutch and sunshell upgrades for reliability.
Perform an adaptive reset/quick learn after install. Some vehicles may benefit from updated PCM calibrations for shift timing and TCC behavior.
Yes—every package includes a matched lockup converter (multi-disc options available in upper tiers).
Use DEXRON-VI. Capacity varies with pan/converter—verify level at temperature using the correct OE procedure.

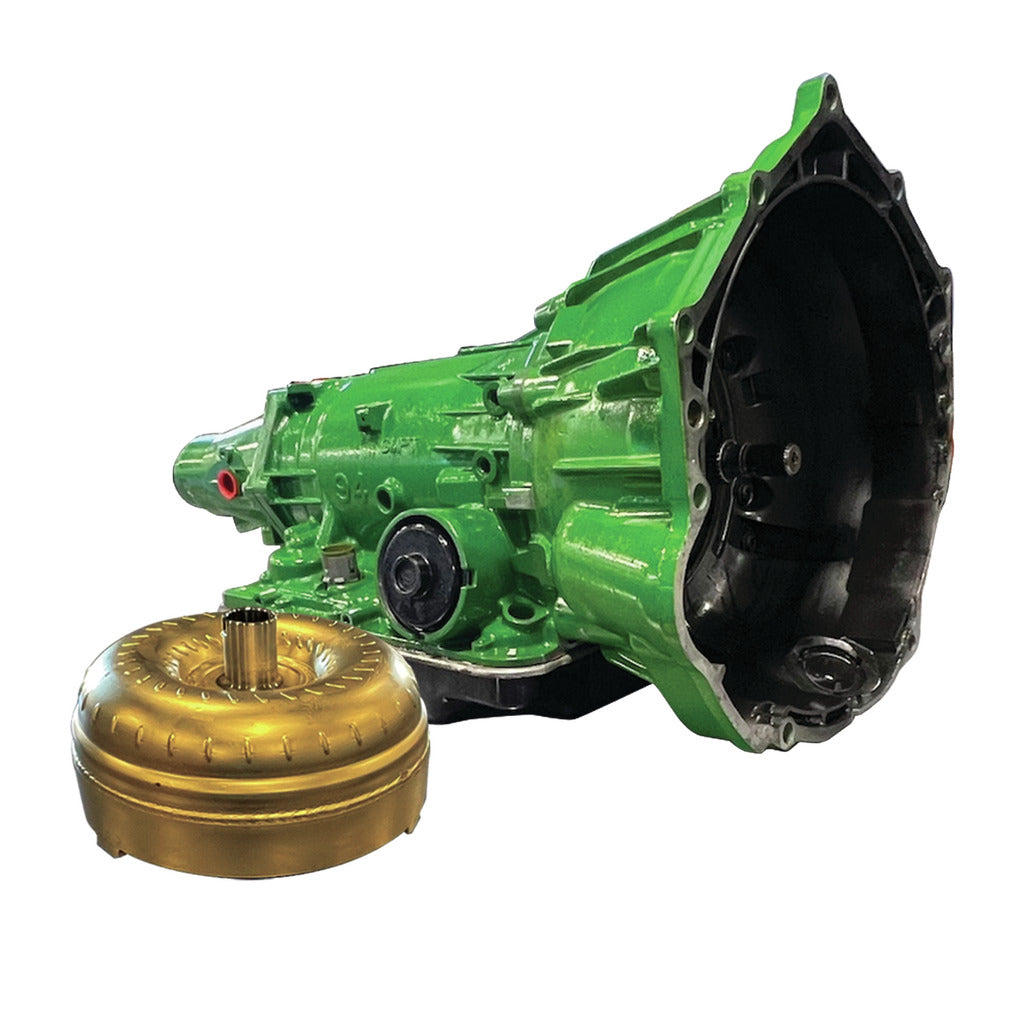

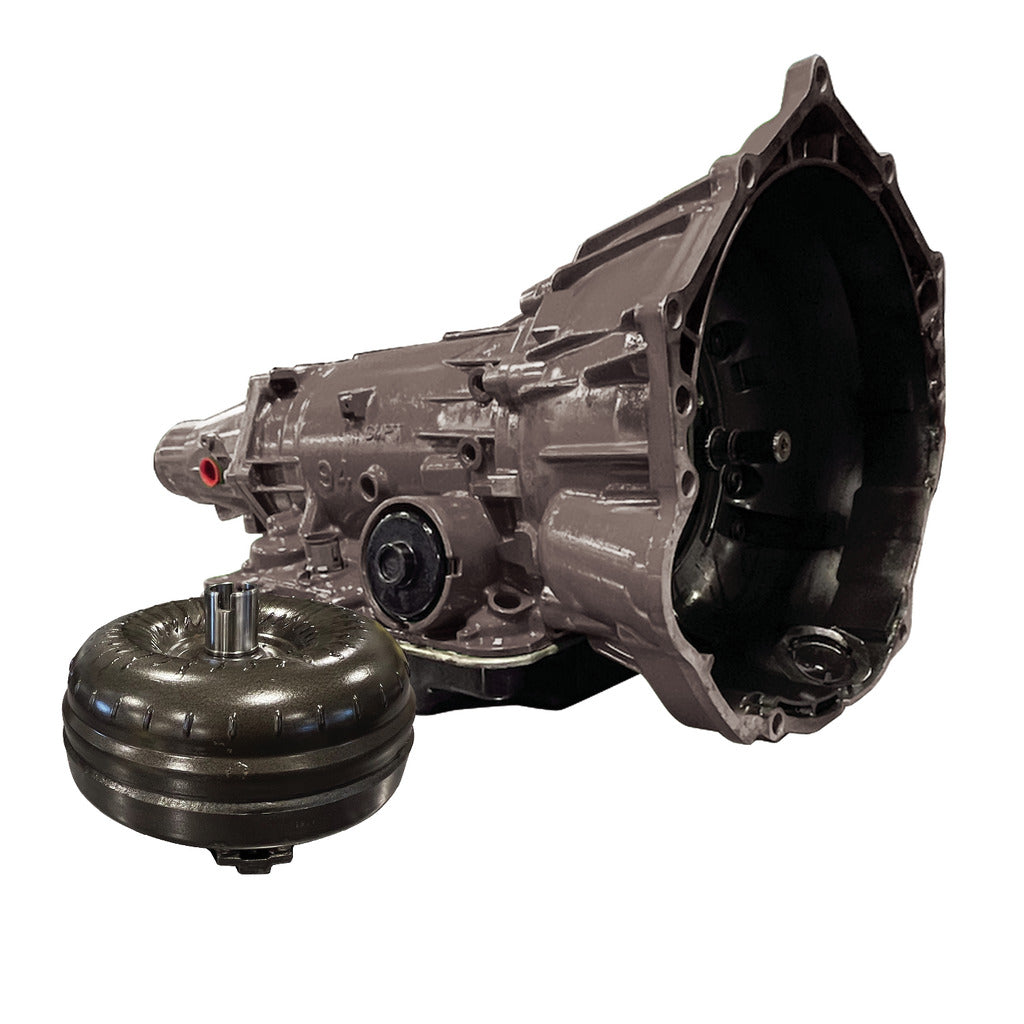

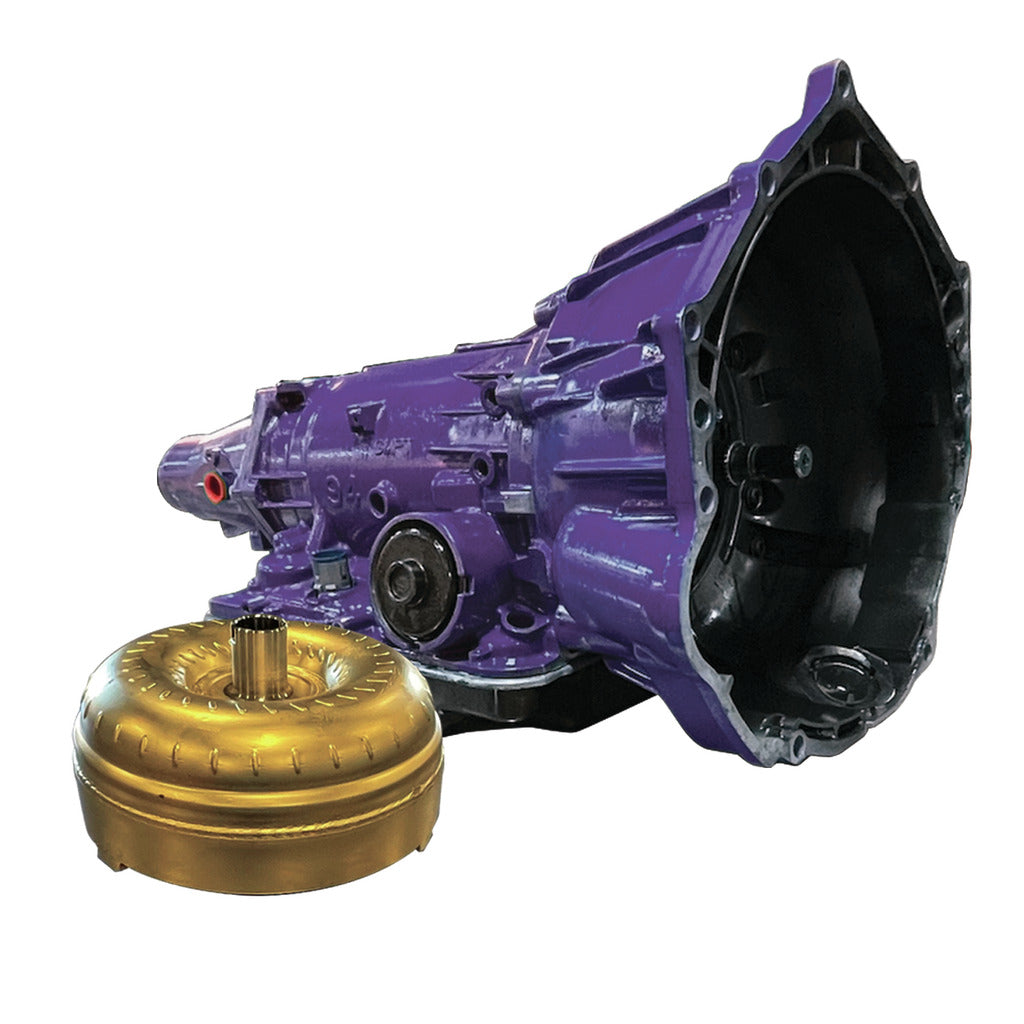

Daily/tow mild mods → Street. Heavier vehicles/sticky tires/track days → Sport. Competition or big power goals → Track.
