Ford AOD vs 4R70W vs 6R80: when to upgrade, how to swap, and how to keep it alive

Jump to: When to repair vs upgrade • TV cable & control differences • Gear ratios & drivability • Planning your AOD → 4R70W or 6R80 swap • Cooling & fluid

When to repair vs upgrade your Ford AOD

If your Ford AOD is slipping, flaring, or has burned fluid, you can sometimes have it rebuilt locally. But AOD cores and quality hard parts are getting older and harder to source. That’s why Monster has retired our AOD reman program and now points owners toward stronger, more serviceable upgrades.

For a budget cruiser that will never see big power, a local rebuild may be enough. If you’re already investing in a transmission and planning for more power, highway miles, or long-term ownership, this is the perfect time to move into a 4R70W or 6R80.

TV cable & control: AOD vs 4R70W vs 6R80

The original AOD relies on a TV (throttle valve) cable to control line pressure. Incorrect geometry or adjustment is the #1 killer of fresh AOD builds. Later 4R70W and 6R80 transmissions use electronic control instead, which allows much finer tuning of shift timing and feel via a controller.

Moving from an AOD to a 4R70W or 6R80 means less time worrying about TV cable geometry and more time dialing in how you want the vehicle to shift.

Gear ratios & drivability

All three (AOD, 4R70W, 6R80) offer overdrive for highway RPM reduction, but 4R70W and 6R80 bring better ratios and more gears. That means stronger launch, smoother part-throttle shifts, and lower cruise RPM with the right rear gears.

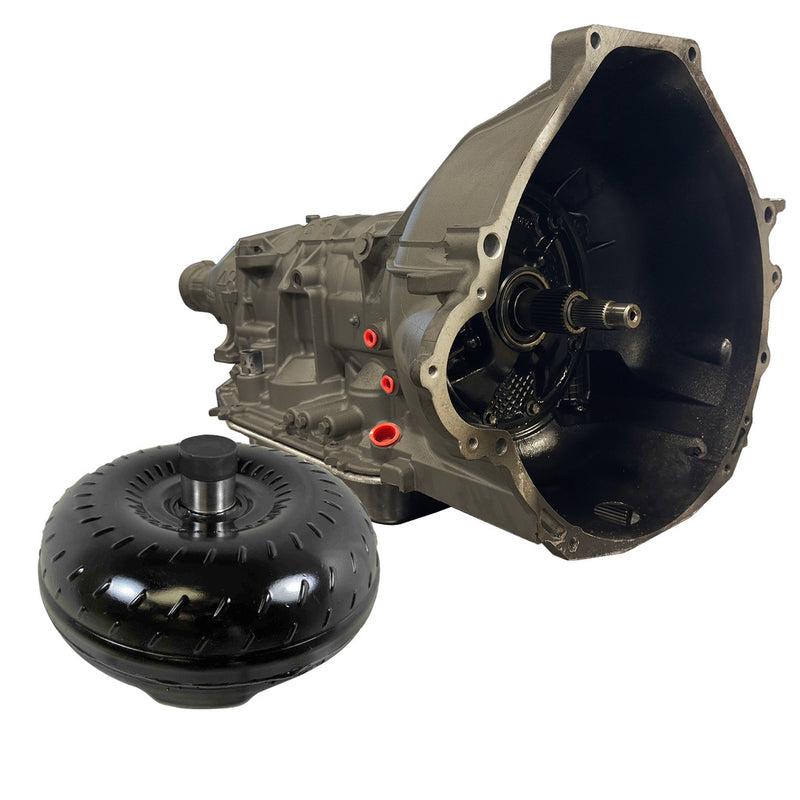

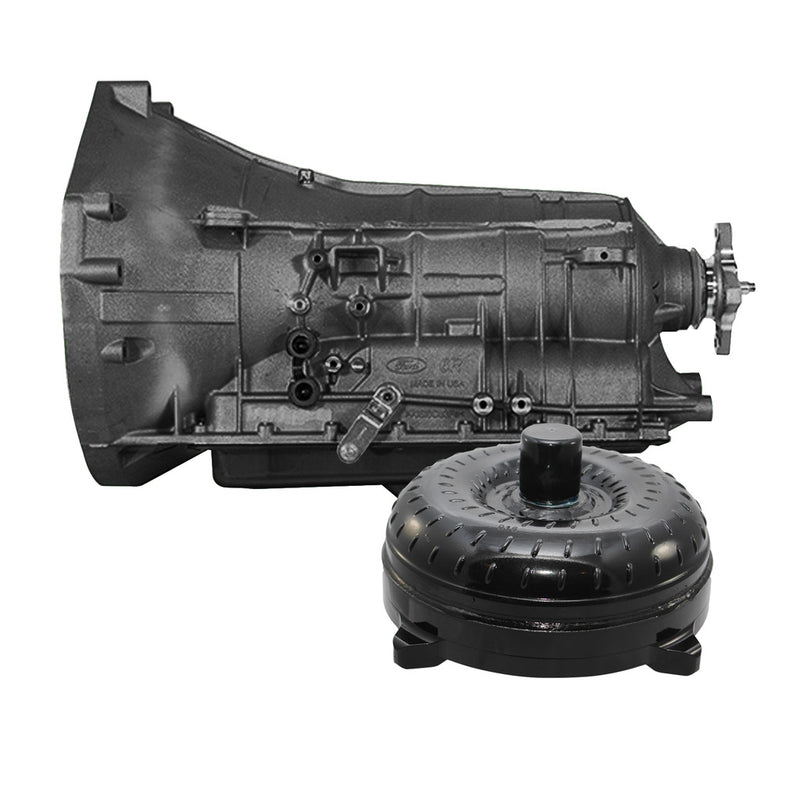

With a 4R70W, you stay close to the original footprint while gaining durability and better gear spacing. A 6R80 takes it further with six forward gears and modern torque management, ideal for higher-power restomods and trucks.

Planning your AOD → 4R70W or 6R80 swap

• Confirm crossmember position and mounting differences.
• Measure driveshaft length and yoke spline engagement.
• Match flexplate and converter pattern to your engine family.
• Plan wiring and standalone controller for 4R70W/6R80 if your vehicle is older.
• Check cooler, lines, and return flow after installation.
• Match converter stall to engine torque curve, gears, and tire size.

Our goal with StreetMonster 4R70W and 6R80 offerings is to give AOD owners a clear, modern path forward instead of chasing aging AOD cores and one-off fixes.

Cooling & fluid (applies to all three)

Whether you stick with an AOD or step up to 4R70W/6R80, heat is the enemy. Always flush or replace the cooler and lines, verify strong cooler return flow, and run quality ATF. For heavy vehicles, towing, or hot climates, an auxiliary low-restriction cooler is cheap insurance.
