GM LS • 4L65E • 300 mm converter applications

4L65E Transmission for Sale for LS Powered Chevy, GMC, Camaro, Firebird, Corvette & Swap Builds

Quality by Design. Monster by Nature.

Choose the right remanufactured 4L65E for your LS application, from a smooth RoadReady stock replacement to a 1000 HP TrackMonster build. Every Monster 4L65E package is matched to the correct 300 mm torque converter setup, built for your 2WD or 4WD configuration, and checked before it leaves our shop.

Since 2003 20+ years building transmissions
Matched converter LS 300 mm converter strategy
Coverage by tier Up to 6 years unlimited miles
800-708-0087 Talk to a product specialist
In Stock
$2,199
RoadReady 4L65E transmission and 300 mm torque converter for LS applications
Best for stock replacement

RoadReady 4L65E

Power rangeStock
  • OEM-style 4L65E replacement for stock LS powered vehicles
  • Matched 300 mm torque converter for LS crank spacing
  • Refreshed frictions, bushings, solenoids, seals, and wear items
  • Factory-smooth shift feel for daily driving and light duty use
  • Warranty: 3 year unlimited miles
Shop RoadReady
$7,299

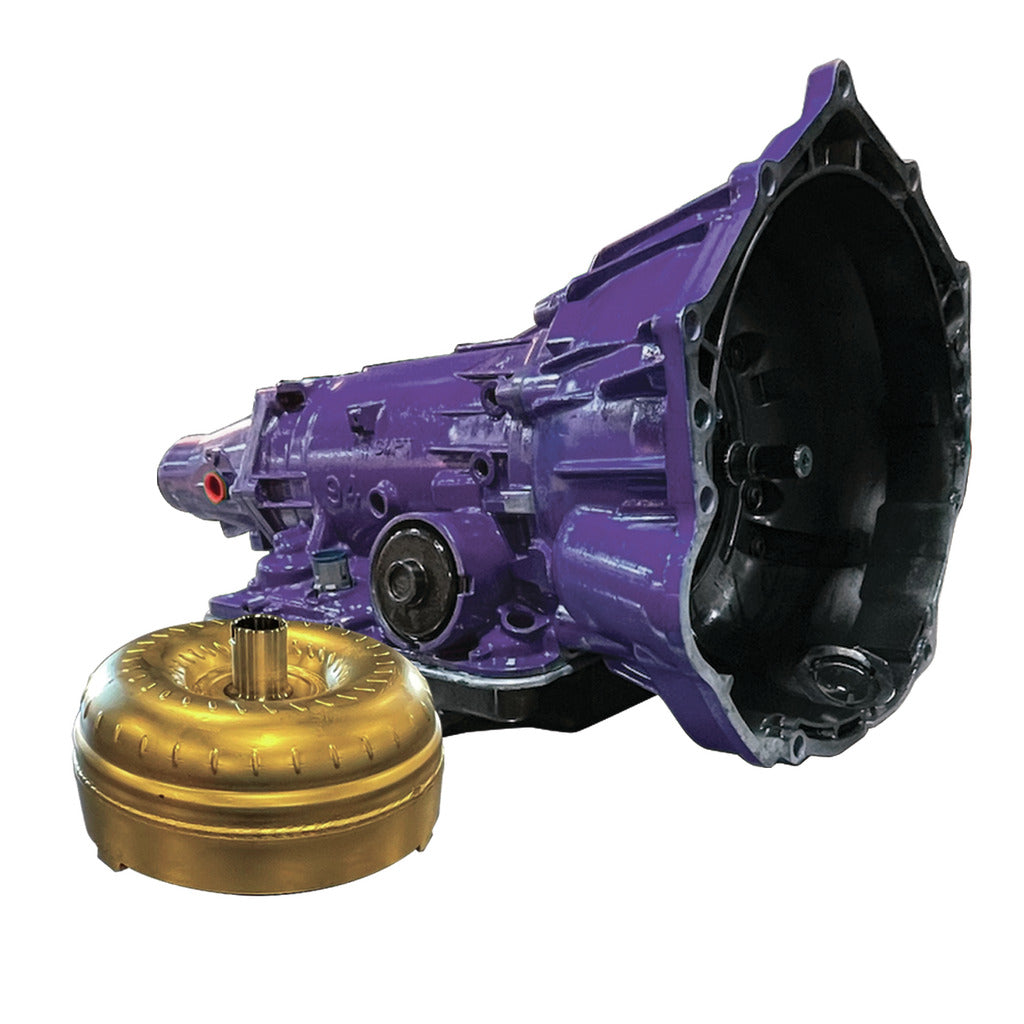

TrackMonster 4L65E transmission with billet multi-disc 300 mm torque converter
Best for maximum effort builds

TrackMonster 4L65E

Power rangeUp to 1000 HP
  • Maximum clutch count and reinforced hard parts for big power
  • Aggressive fast shift strategy for track and high output use
  • Billet multi-disc 300 mm converter for serious LS combinations
  • Built for boosted, sprayed, high stall, and race-focused applications
  • Warranty: 1 year unlimited miles
Shop TrackMonster 2WD Shop TrackMonster 4WD

Horsepower guidance depends on vehicle weight, tire size, gearing, converter selection, tuning, cooling, and how the vehicle is used. When in doubt, step up one build level.

Not sure if your vehicle needs a 4L65E, 4L60E, or 4L70E?

Call with your year, make, model, engine, 2WD or 4WD setup, and VIN. A product specialist can help confirm the LS bellhousing pattern, 300 mm converter requirement, output configuration, and the build tier that matches your power goal.

☎ 800-708-0087 Speak with a real product specialist
Compare builds

Which Monster 4L65E transmission is right for your build?

Start with the vehicle, power level, converter needs, and how hard it will be used. A daily driver with stock tires needs a different transmission than a cammed LS swap, boosted truck, or track car.

Stock feel

RoadReady

Best for customers replacing a failed 4L65E in a stock or close-to-stock vehicle.

  • Stock power range
  • Smooth factory-style shifts
  • Matched 300 mm converter
  • 3 year unlimited mile warranty

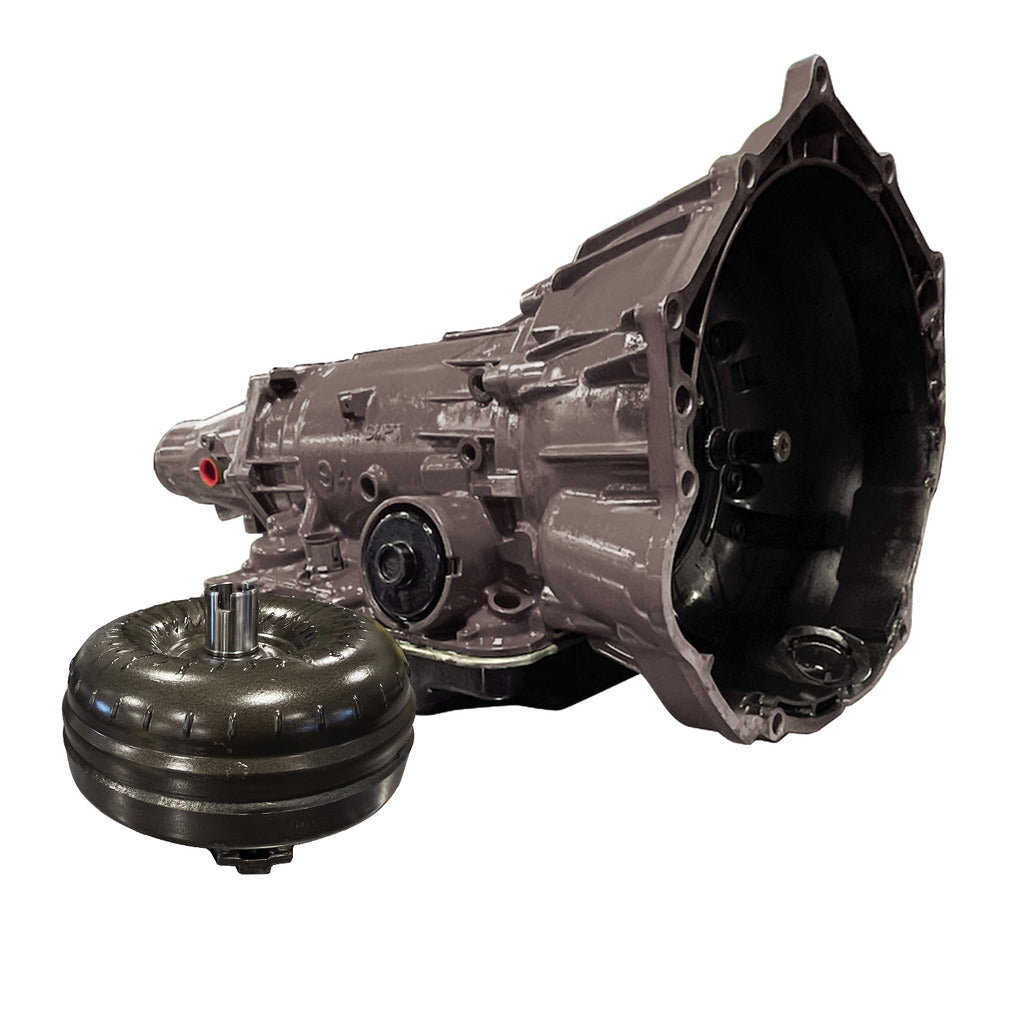

Street upgrade

StreetMonster

Best for the customer who wants a stronger 4L65E without making the vehicle feel harsh.

  • +100 HP over stock guidance
  • Wide 2-4 band and Corvette servo
  • Better clutch holding capacity
  • 3 year unlimited mile warranty
Performance value

SportMonster

Best for higher horsepower LS street builds that need clutch capacity and converter strength.

  • Up to 600 HP guidance
  • Red Race clutch pack
  • Billet single-disc converter
  • 6 year unlimited mile warranty
Big power

TrackMonster

Best for serious LS combinations where traction, boost, nitrous, stall, and track use are part of the plan.

  • Up to 1000 HP guidance
  • Maximum clutch count
  • Billet multi-disc converter
  • 1 year unlimited mile warranty
Common failure points

4L65E problems Monster builds around

The 4L65E is a strong member of the 4L60E family, but heat, converter slip, added torque, and aggressive driving can expose the same weak areas over time. The right build level helps protect the parts that take the most abuse.

Clutch wear

3-4 clutch failure

The 3-4 clutch pack is one of the most common wear areas in the 4L65E family. StreetMonster, SportMonster, and TrackMonster builds step up clutch strategy to better match added power and load.

Band apply

2-4 band and servo issues

A tired band, worn servo, or weak apply can lead to soft shifts and heat. The wide 2-4 band and Corvette servo strategy helps create a cleaner, firmer apply.

Converter match

Wrong converter setup

LS 4L65E applications use a 300 mm input and converter setup. Getting this wrong can cause fitment, spacing, and drivability issues, which is why each complete Monster package includes a matched converter.

Hard parts

SunShell and hard part stress

High torque, traction, towing, and aggressive shift strategy can punish hard parts. SportMonster and TrackMonster builds add stronger components where the application calls for it.

Heat control

Overheating and cooler contamination

Heat shortens clutch and converter life. A clogged cooler or contaminated lines can damage a fresh transmission quickly, so cooler flow and fluid cleanliness matter after every install.

Electronics

Shift adaptives and tuning

After installation, the PCM needs proper adaptive relearn behavior. Performance builds also need tuning that respects line pressure, shift timing, converter lockup, and vehicle use.

Fitment guide

LS 4L65E fitment: year, bellhousing, converter, and 2WD vs 4WD

Before ordering, confirm that your vehicle uses the LS-style 4L65E with the top 12 o'clock bellhousing bolt and the correct 300 mm converter setup. Many GM vehicles in this era look similar from the outside, but fitment details can change by year, body style, engine, and drivetrain.

1998 and newer F-body and Corvette applications

LS powered Camaro, Firebird, and Corvette applications can use LS-pattern 4L60E and 4L65E family transmissions depending on year and build. Converter spacing and the 300 mm setup must be verified before ordering.

1999 to 2006 GM LS trucks and SUVs

Many Silverado, Sierra, Tahoe, Yukon, Suburban, and Escalade applications used LS-pattern 4-speed automatics. Vehicle weight, towing, tire size, and power level should guide the build tier.

2007 Classic vs 2007 new-body changeover

2007 Classic 1500 trucks can still fall into the LS 4L65E family, while many 2007 new-body GMT900 trucks and SUVs moved toward 4L70E applications. VIN verification is strongly recommended.

Model year Common vehicle group Key fitment check Ordering note
1998+ Camaro, Firebird, Corvette, LS swap builds LS bellhousing pattern and 300 mm converter spacing Confirm converter style, flexplate, and tuning plan
1999 to 2006 Silverado, Sierra, Tahoe, Yukon, Suburban, Escalade 2WD or 4WD output and tailhousing setup Choose build by tire size, towing, power, and use
2007 Classic Silverado Classic and Sierra Classic 1500 Classic body style vs new-body GMT900 VIN check helps avoid ordering a 4L70E by mistake
2007 new-body Tahoe, Suburban, Yukon, Avalanche, Escalade, select 1500 trucks Many applications use 4L70E instead of 4L65E Verify by VIN, RPO, and build tag before ordering
Important: 4L60E, 4L65E, and 4L70E units can look very similar. The correct choice depends on year, engine, bellhousing pattern, input shaft, converter, output shaft, 2WD or 4WD configuration, and electronics. If you are not sure, call before ordering.
Protect your build

Recommended 4L65E add-ons

A fresh transmission should start with clean fluid, strong cooler flow, and the right supporting parts. These add-ons help protect the new build and reduce avoidable heat-related failures.

Transmission Cooler

Helps lower operating temperature and protect clutches under load, towing, or performance use.

Cooling
Full Synthetic ATF

Start the installation with clean fluid and set the level properly at operating temperature.

Fluid
Torque Converter Options

Converter selection should match the cam, tire size, gearing, weight, and powerband.

Converter
Install Parts

Use the right installation parts to avoid leaks, contamination, and early wear.

Install

4L65E transmission buying guide

If you are comparing a local rebuild, a remanufactured 4L65E, and a complete Monster 4L65E transmission package, start with the application. A stock LS truck needs dependable shift quality and the right converter. A cammed LS swap needs converter and tuning compatibility. A boosted or sprayed car needs more clutch capacity, stronger hard parts, and a converter strategy that can survive the load.

4L65E vs 4L60E vs 4L70E

The 4L65E is part of the 4L60E family, but it was used in heavier duty and higher torque applications. The 4L70E is a later related unit found in many 2007 and newer GM applications. They can look similar, so do not order by appearance alone. Match the unit by year, VIN, bellhousing pattern, input, converter, output, and electronics.

Why the 300 mm converter matters

LS 4L65E applications use a 300 mm converter setup. The wrong converter can create spacing issues, engagement problems, vibration, or poor drivability. Monster packages the transmission with a matched converter so the build, input, and converter strategy work together.

2WD vs 4WD

A 2WD and 4WD 4L65E are not ordered the same way. The output shaft and tailhousing or transfer case setup must match the vehicle. SportMonster and TrackMonster options include separate 2WD and 4WD shop paths to make ordering easier.

Installation checklist

  • Flush or replace the transmission cooler and lines before startup
  • Confirm strong cooler return flow before road testing
  • Use the correct fluid and verify final level at operating temperature
  • Confirm converter seating depth before installing the transmission
  • Inspect flexplate, mounts, wiring, grounds, and cooler fittings
  • Perform proper PCM relearn or tuning steps after installation
  • Recheck leaks, shift quality, and temperature after the first heat cycles
4L65E FAQ

Common questions about buying a 4L65E transmission

Use these answers to narrow down fitment, converter requirements, build level, fluid, installation, and warranty before ordering.

What vehicles use a 4L65E transmission?
The 4L65E is commonly associated with GM LS powered applications from the late 1990s through the mid 2000s, including select Chevy, GMC, Cadillac, Camaro, Firebird, Corvette, truck, SUV, and swap combinations. Because 4L60E, 4L65E, and 4L70E applications overlap, always verify by VIN, year, body style, engine, drivetrain, and build tag.
What is the difference between a 4L60E and 4L65E?
The 4L65E is a stronger member of the 4L60E family and was used for higher torque applications. Fitment still depends on details like bellhousing pattern, input shaft, converter, output shaft, and electronics. Do not order only by the pan shape or general appearance.
What is the difference between a 4L65E and 4L70E?
The 4L70E is a later related transmission found in many newer GM applications, especially around the 2007 changeover. If you have a 2007 new-body GM truck or SUV, verify carefully because many of those applications use a 4L70E rather than a 4L65E.
Does the 4L65E transmission include a torque converter?
Yes. The complete Monster 4L65E packages on this page include a matched 300 mm torque converter. SportMonster uses a billet single-disc converter strategy, and TrackMonster steps up to a billet multi-disc converter strategy.
Do I need a 2WD or 4WD 4L65E?
Order by the drivetrain configuration in the vehicle. A 2WD unit and 4WD unit can require different output and tailhousing or transfer case compatibility. If your vehicle has been swapped or converted, call before ordering.
Which 4L65E build should I choose for a cammed LS swap?
A mild cammed LS street car often fits StreetMonster or SportMonster, depending on power, converter stall, tire, gear, and vehicle weight. If the build has boost, nitrous, a high stall converter, sticky tires, or track use, SportMonster or TrackMonster is usually the safer direction.
What fluid should I use in a 4L65E?
Use the correct automatic transmission fluid for your application and follow the installation instructions that come with the build. Fluid level should be checked at operating temperature using the proper procedure, and the cooler and lines must be clean before the transmission is used.
Do I need programming or a relearn after installing a 4L65E?
Yes. The PCM should be allowed to relearn shift behavior, and performance applications may require tuning for shift timing, line pressure, converter lockup, tire size, gear ratio, and engine output. Good tuning helps protect the clutches and converter.
What are the most common 4L65E failure points?
Common problem areas include 3-4 clutch wear, 2-4 band and servo wear, converter slip, heat-related clutch damage, hard part stress, and cooler contamination after a previous failure. The right build level and a clean cooler system are both important.
What warranty comes with a Monster 4L65E?
Warranty coverage depends on the build tier. RoadReady and StreetMonster include 3 year unlimited mile coverage, SportMonster includes 6 year unlimited mile coverage, and TrackMonster includes 1 year unlimited mile coverage.
